Catheter Mounts
Catheter Mounts
Catheter Mounts (AMCM)
Catheter mounts are constructed of extruded plastic tubes, available in a variety of lengths and materials and can be fitted with a variety of elbows and connector types.
Catheter Mounts, Tracheostomy high flow cannula (AMTC)
Tracheostomy high flow cannula (AMTC1100) is used during high flow oxygen therapy in tracheostomized patients.
The Tracheostomy high flow cannula is constructed of a extruded plastic tube and patient-end connector – the connector having a gas exit hole and cough splatter cup. The cannula connects at one end to a patient interface such as a tracheostomy tube and to a breathing circuit at the other end.
- Compliance of connectors to BS EN ISO 5356-1:2015.
- Compliance of Tubing to BS EN ISO 5367:2014.
- Compliance with catheter mount standard BS 7143-1989.
- Stability of device lifetime is 5 years (plus expected usage period).
- AMTC Tracheostomy High Flow Cannula can permit high flows from 4 to 60L/min.
Resources
Print Material
Promotional Materials

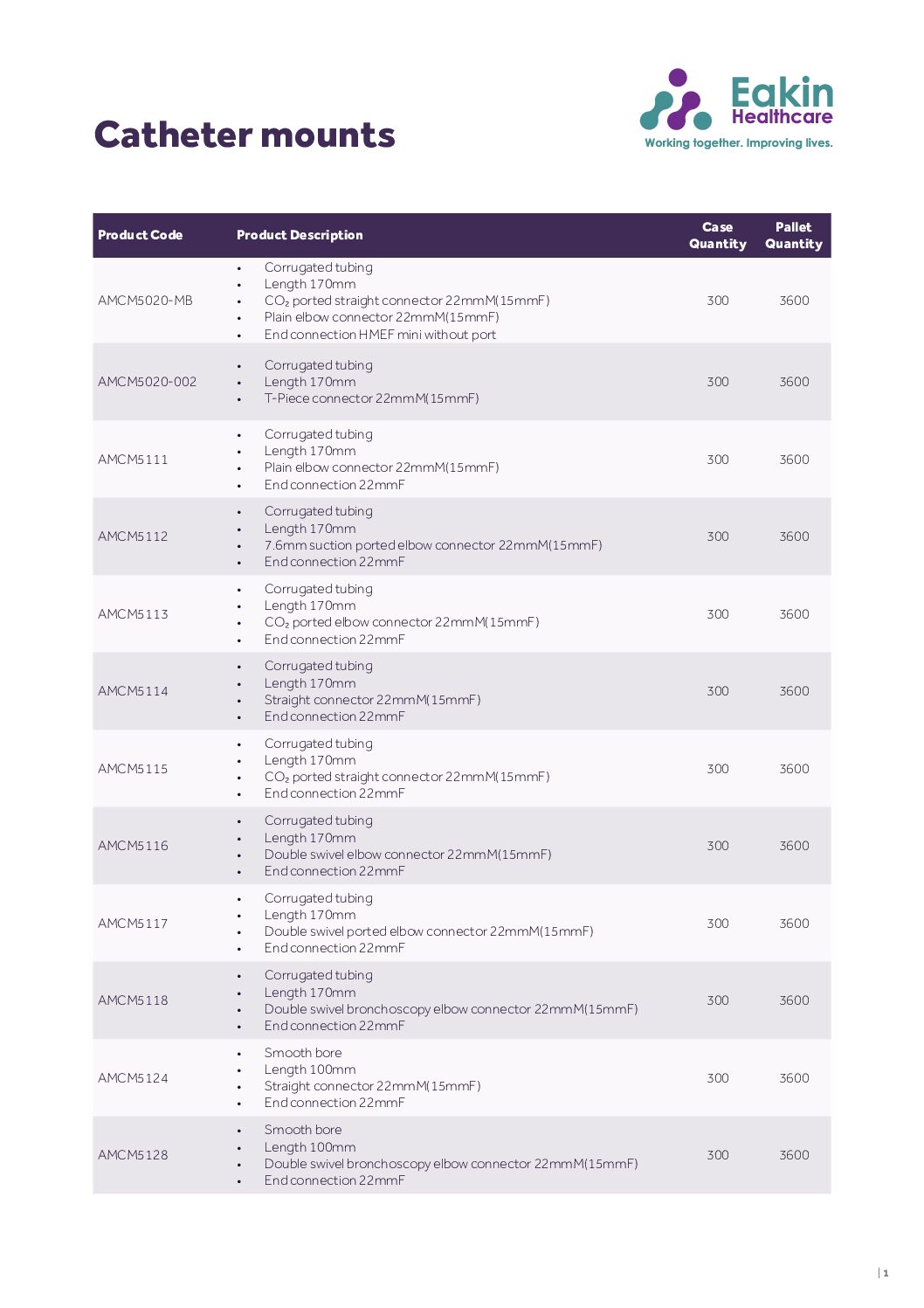

Product Codes
Code
Description
AMCM5111
Corrugated Plain Elbow tubing (Length 170mm, connection 22mmM (15mmF), End connection 22mmF)

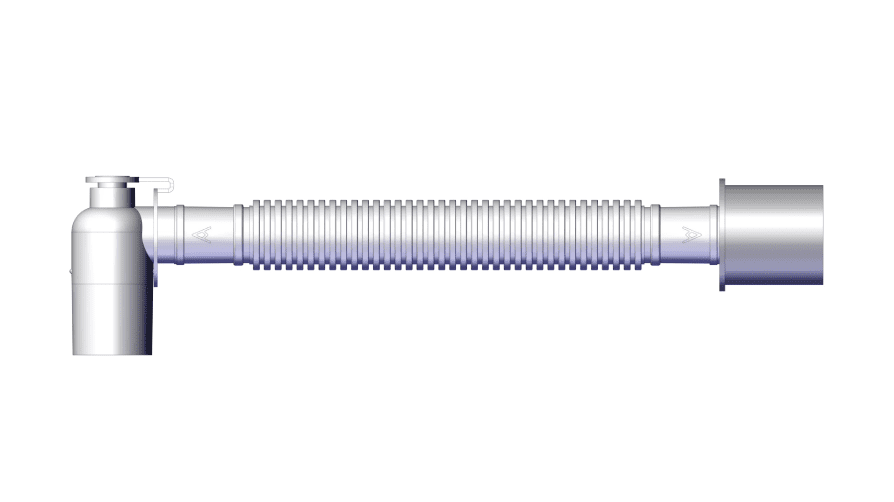

AMCM5112
Corrugated 7.6mm Suction Ported Elbow (Length 170mm, connection 22mmM (15mmF), End connection 22mmF)
AMCM5114
Corrugated Straight Connector (Length 170mm, connection 22mmM (15mmF), End connection 22mmF)
AMCM5115
Corrugated CO₂ Ported Straight Connector (Length 170mm, connection 22mmM (15mmF), End connection 22mmF)
AMCM5116
Corrugated Double Swivel Elbow (Length 170mm, connection 22mmM (15mmF), End connection 22mmF)

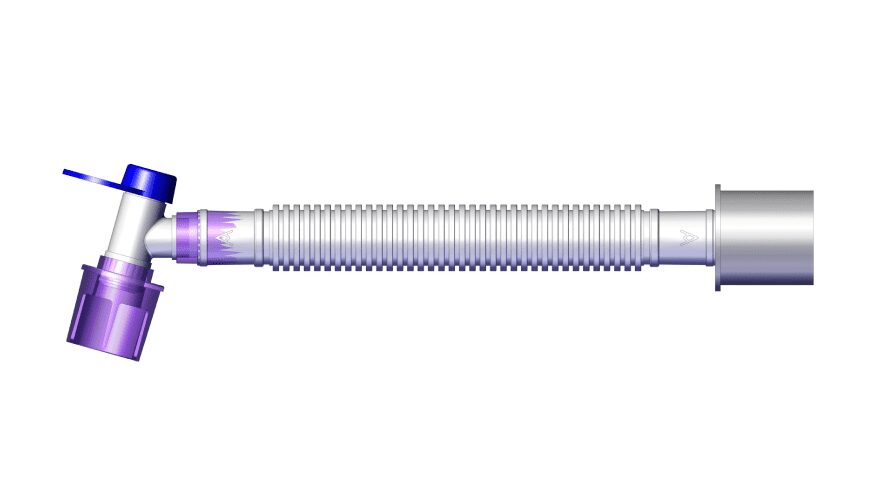

AMCM5117
Corrugated Double Swivel Ported Elbow (Length 170mm, connection 22mmM (15mmF), End connection 22mmF)

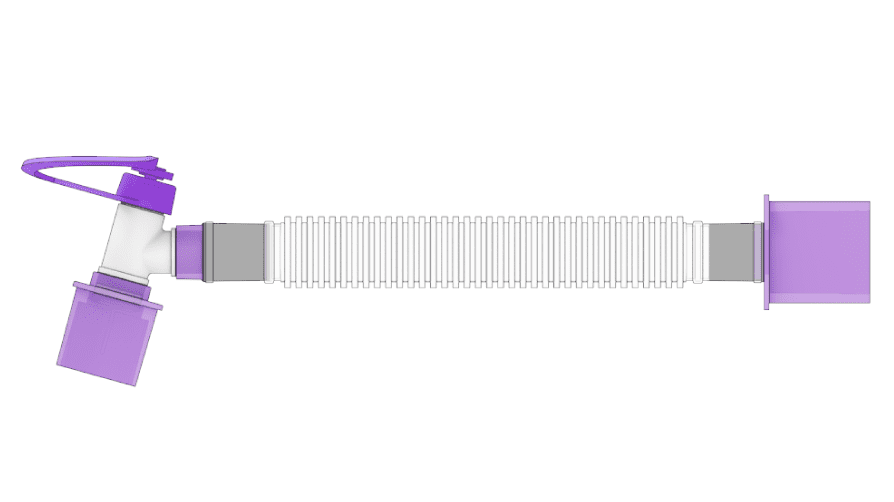

AMCM5118
Corrugated Double Swivel Bronchoscopy Elbow (Length 170mm, connection 22mmM (15mmF), End connection 22mmF)
AMCM5141
Corrugated Extendible Tubing (Length 150mm, connection 22mmM (15mmF), End connection 22mmF)
